ZarhusBMC: The second encounter - Porting OpenBMC to X11SSH part II

Introduction - the struggle continues

This is the second part (or a second edition) of the blog post series regarding ZarhusBMC and porting OpenBMC to the Supermicro x11ssh platform. In this blog post, I’ll share the progress we made since the last time, where we currently stand, and what the future plans are for the platform.

Up to speed

If you want to get up to speed with the first ZarhusBMC and x11ssh related blog post, here’s a link for your convenience: blog.3mdeb.com/2025/2025-04-28-zarhusbmc/1

In the first blog post, I provided a general overview of what OpenBMC is and the role it takes in the world of proprietary, unauditable solutions. I also showcased the effort it took to run custom-built OpenBMC on the x11ssh platform.

I have since managed to build OpenBMC with serial console access. During the Last Zarhus Developers meetup2, I showcased that we were able to access the web UI of OpenBMC, but because I compiled the solution without user management setup, we could not access the admin console.

The fact that software is running does not necessarily mean it is working. …and this is where we start this blog post.

The second encounter

Not long after the presentation, I found myself working on porting OpenBMC once again. I have recompiled the custom OpenBMC, but this time, instead of disabling user management, I disabled logging (who would need that, right?) and managed to enter the OpenBMC admin panel via Web UI.

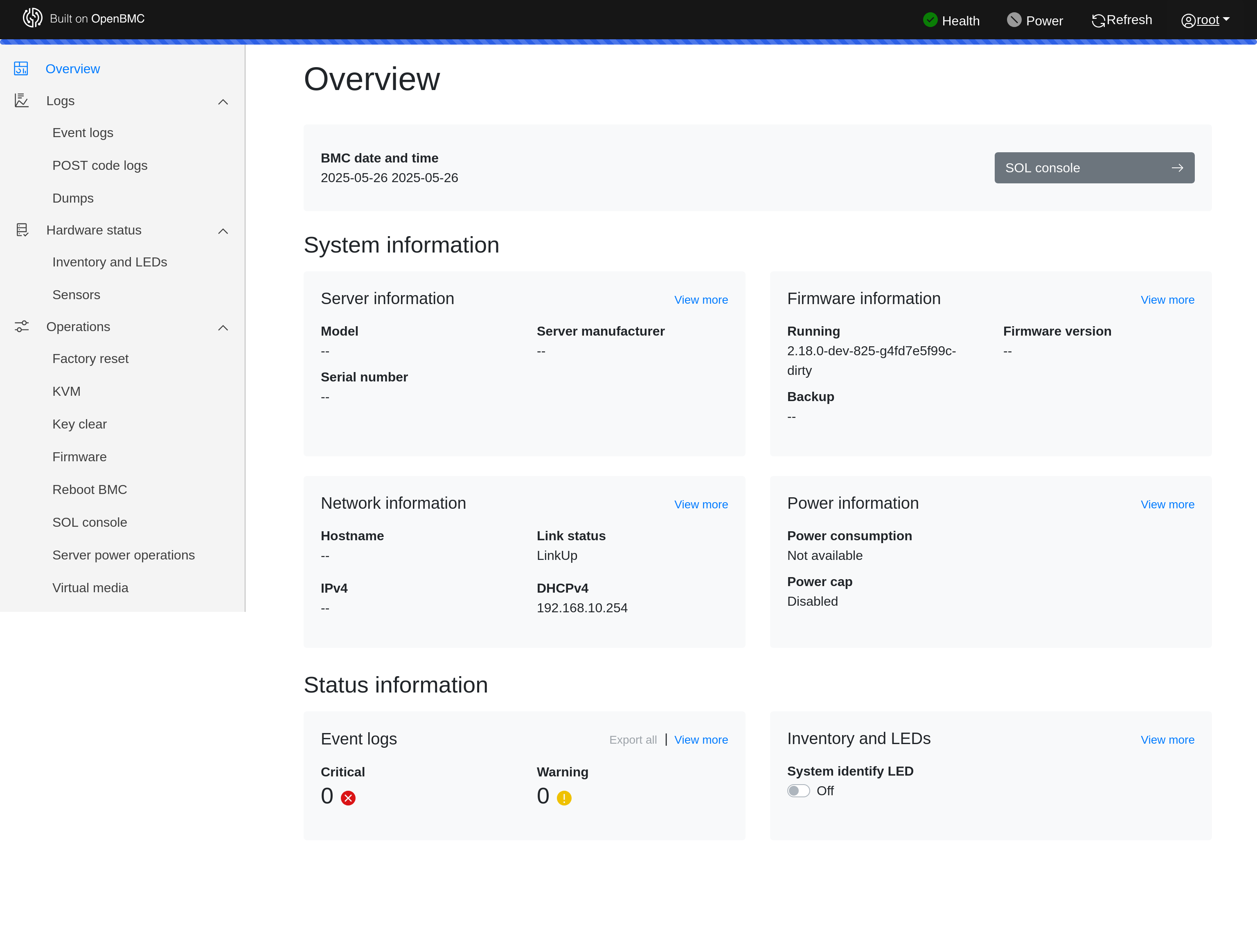

OpenBMC Admin Panel

…but it looks a bit empty, innit?

The real issue

While the system (OpenBMC) is running, there is no communication with the host, and the task was to establish why.

TL;DR: The issue narrows down to two major service failing as shown in the below snippet (I’m ignoring LEDs for now).

1
2
3
4

root@x11ssh:~# systemctl list-units --type=service | grep failed
* obmc-led-group-start@bmc_booted.service                                     loaded failed failed  Assert bmc_booted LED
* phosphor-ipmi-kcs@ipmi-kcs3.service                                         loaded failed failed  Phosphor IPMI KCS DBus Bridge
* xyz.openbmc_project.Chassis.Control.Power@0.service                         loaded failed failed  Intel Power Control for the Host 0

The ipmi-kcs is a main service that controls communication with the host. The IPMI (Intelligent Platform Management Interface) is a protocol for independent hardware management, while the KCS (Keyboard Controller Style) is a transport layer between the host and the BMC for communication. This component is crucial for OpenBMC to work properly, but I’ll share the reason why it isn’t working later in this post.

The second Control.Power service, as the name suggests, is responsible for controlling platform power states. It too is a crucial component, and due to it not working, we could not even control the host power state from the Web-UI.

The issue with KCS

Let’s briefly talk about KCS origins. As discussed earlier, KCS, or “Keyboard Controller Style,” is a register-based interface defined by a set of bit-level operations. Its design traces back to the Intel 8742 microcontroller originated in the 70s, which served as the keyboard controller in legacy computers3. The interface was later repurposed for system management tasks, including IPMI, and became widespread in BMC solutions due to its simplicity, byte-oriented protocol, and broad hardware compatibility4.

The BMC firmware is essentially just another ARM Linux distribution. Like on most ARM-based systems, hardware is described via the device tree, which includes physical interfaces such as KCS. The device tree structures can come from various sources: delivered by SoC Vendors, created based on schematics and data sheets, or made by reverse engineering. It is not something one would want to create from the beginning.

The fact is, the dts/dtsi files for Aspeed AST2400 embedded into x11ssh motherboard do not have the KCS interfaces defined. This is how the KCS definition could look.

1
2
3
4
5
6
7

    kcs3: kcs@2c {
     compatible = "aspeed,ast2500-kcs-bmc-v2";
     reg = <0x2c 0x1>, <0x38 0x1>, <0x44 0x1>;
     interrupts = <8>;
     clocks = <&syscon 8>;
     status = "disabled";
    };

Source: linux-aspeed5

This definition comes from a newer, Aspeed AST2500 device structure. Since we’re missing this definition, the KCS device is not created, and thus the service fails.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

root@x11ssh:~# systemctl start phosphor-ipmi-kcs@ipmi-kcs3.service
Job for phosphor-ipmi-kcs@ipmi-kcs3.service failed because the control process exited with error code.
See "systemctl status phosphor-ipmi-kcs@ipmi-kcs3.service" and "journalctl -xeu phosphor-ipmi-kcs@ipmi-kcs3.service" for details.
root@x11ssh:~# systemctl status phosphor-ipmi-kcs@ipmi-kcs3.service
x phosphor-ipmi-kcs@ipmi-kcs3.service - Phosphor IPMI KCS DBus Bridge
     Loaded: loaded (8;;file://x11ssh/usr/lib/systemd/system/phosphor-ipmi-kcs@.service/usr/lib/systemd/system/phosphor-ipmi-kcs@.service8;;; enabled; preset: 5:185mdisabled)
     Active: failed (Result: exit-code) since Thu 2024-12-19 22:03:08 UTC; 16s ago
 Invocation: 498e04833e5e4183bdecb22273fd34bd
    Process: 381 ExecStart=/usr/libexec/kcsbridged -c ipmi-kcs3 (code=exited, status=1/FAILURE)
   Main PID: 381 (code=exited, status=1/FAILURE)
[...]
root@x11ssh:~# /usr/libexec/kcsbridged -c ipmi-kcs3
FAILED: open `/dev/ipmi-kcs3`: No such file or directory
[...]
root@x11ssh:~# ls /dev/ | grep "ipmi\|kcs"
root@x11ssh:~#

The good news, however, is that these (KCS) addresses seem to be standardized between various Aspeed models and can also be found in the SoC datasheet. I just haven’t had a chance to test if adding it would work, but I don’t see why it wouldn’t.

GPIO issue

The second issue is also related to the device tree structure and missing definitions, but this case is different. While multiple vendors can use the same BMC SoC, and each deployment will use the same set of KCS addresses, it’s up to the OEM to decide how to “wire up” the BMC. This makes each deployment specific.

This is important as BMCs feature a set of GPIO pins that probe or set up various endpoints on the motherboard. This might seem like it isn’t really an issue. How many GPIOs can such a BMC have, right?

The answer is 216 (as stated in documentation), which is too high a number for a trial-and-error approach. For base operation, we should not require a full subset of pins, but still, we are missing definitions that are required for power state managers.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

root@x11ssh:~# systemctl status xyz.openbmc_project.Chassis.Control.Power@0.service  -l
x xyz.openbmc_project.Chassis.Control.Power@0.service - Intel Power Control for the Host 0
     Loaded: loaded (8;;file://x11ssh/usr/lib/systemd/system/xyz.openbmc_project.Chassis.Control.Power@.service/usr/lib/systemd/system/xyz.openbmc_project.Chassis.Control.Power@.service8;;; static5:185m)
     Active: failed (Result: exit-code) since Wed 2025-05-28 07:47:23 UTC; 31s ago
   Duration: 221ms
 Invocation: 61954bed677f4eaf968da173a1076bb5
    Process: 433 ExecStart=/usr/bin/power-control 0 (code=exited, status=255/EXCEPTION)
   Main PID: 433 (code=exited, status=255/EXCEPTION)
[...]
root@x11ssh:~# /usr/bin/power-control 0
<6> Start Chassis power control service for host : 0
<3> BiosMux is not a recognized power-control signal name
<3> Host0: Error in Parsing...
<6> SIO control GPIOs not defined, disable SIO support.
<3> PowerOk name should be configured from json config file

Note: I later switched to x86 power control.

The GPIO definitions for x11ssh for u-bmc6, HardenedVault’s attempt7, or our attempts, all use the work of Keno Fisher8 for those definitions. While the subset for pins might have been sufficient for u-bmc in the past (the x11ssh development has been abandoned), it is not sufficient for now. I’ve got to admit, it’s still a mystery to me how Keno managed to come up with those definitions; however, I’ll touch on one possible approach later in this post.

The effort

The “damage control” isn’t the only thing we were focusing on since the last time. Although we have not yet been successful in addressing the previously mentioned issues, as many other projects come in the way, we still managed to progress a lot thanks to the community effort. Let’s discuss what we managed to achieve.

Open discussions

Let’s start with something different, non-technical. We’ve launched ZarhusBMC discussions9, where anyone interested in the project can check out what we are currently working on in the BMC space. In true open-source spirit, we want to be as transparent as possible, and we encourage taking an active part in the discussion.

We’ve already hosted two such discussions. These aim for these to be a more streamlined form of live coding. Every time we’re working on something, a discussion is made, and we update statuses as we go. This has two upsides that are partially related. First of all, we’re closer to the community, and secondly, in case we require any 3rd party or community input, the results and steps we tried are in the commonplace and publicly available.

Speaking of commonplace, we’ve chosen GitHub discussions as a place to host these. True, you’ll still need an account to take part in the discussion, but at least the information is publicly accessible.

As a side note, being so open also has its downsides. One being the free (as in free will) content is a “free real estate10” for AI bot farms, which we already had a taste of11 😉.

Probing stock firmware p. I - QEMU, binwalk, gdb, and stock firmware sources

In order to resolve the previously mentioned issues, mainly the GPIO pins definitions, we decided to give a stock firmware probing a chance. The attempt can be summarized in 4 steps:

Disassembling the firmware image

First, we decided to have a go at disassembling the firmware binary. The binwalk utility has been used in the process, and it successfully extracted the “partition layout”. This way, we could go through most of the files comfortably. We were hoping we could find device tree binaries (DTBs) for a further attempt at decompilation. Unfortunately, due to the age of the Linux kernel used, it was not possible, but more on that later.

Booting stock firmware under QEMU

  1. As a second take, we’ve “booted” the stock firmware under QEMU, same as we previously did with our custom-built OpenBMC image. This gave us a peek inside the running system, but due to the missing hardware, many services were failing, thus it was hard to assess how reliable scoping would be. We were, however, able to gain some insight this way: the firmware runs on an ancient, custom Linux kernel version 2.6.28.19, there was no /proc/devicetree nor a sysfs interface for controlling GPIOs. …and this brings us to the next point.

ATAGs

  1. Due to the age of the kernel, we suspected the Linux kernel uses a pre-device-tree mechanism known as ATAGs12. ATAGs provide only basic platform information, so the running image can verify it, and all the hardware support is built directly into the “kernel”. We used gdb to verify that’s indeed the case.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

boot# imls
Legacy Image at 21400000:
Image Name:   21400000
Image Type:   ARM Linux Kernel Image (gzip compressed)
Data Size:    1536834 Bytes =  1.5 MB
Load Address: 40008000
Entry Point:  40008000
Verifying Checksum ... OK
boot# bdinfo
arch_number = 0x00000385
env_t       = 0x00000000
boot_params = 0x40000100
DRAM bank   = 0x00000000
-> start    = 0x40000000
-> size     = 0x08000000
ethaddr     = 00:00:00:00:00:00
ip_addr     = 192.168.0.188
baudrate    = 115200 bps
boot# md.b 0x40000100 64

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

(gdb) break *0x40008000
Breakpoint 1 at 0x40008000
(gdb) c
Continuing.

Breakpoint 1, 0x40008000 in ?? ()
(gdb) info registers r0
r0             0x0                 0
(gdb) info registers r1
r1             0x385               901
(gdb) info registers r2
r2             0x40000100          1073742080
(gdb) info registers r3
r3             0x9007a             589946
(gdb) info registers r4
r4             0x0                 0
(gdb) info registers r5
r5             0x4052fd0c          1079180556
(gdb) info registers r6
r6             0x404cffb8          1078788024
(gdb) info registers r7
r7             0x385               901

[...]

(gdb) x/12wx 0x40000100
0x40000100:     0x00000005      0x54410001      0x00000000      0x00000000
0x40000110:     0x00000000      0x00000004      0x54410002      0x08000000
0x40000120:     0x40000000      0x00000000      0x00000000      0x00000000

The r2 register confirms the presence of the ATAG mechanism.

Sources

Our last chance at that moment was scoping the source files for the stock firmware. How obtainable are these, you might ask? As previously stated, the BMC firmware is basically yet another ARM Linux distribution, and the Linux GPL license requires publishing the source code of the solution. Moreover, the GPL is a “viral” license. If you incorporate part of a GPL solution into your software, it must be licensed under the same license. This ensures the sources must be made available to binary recipients (customers), and sometimes even to any third party, depending on how the vendor complies with the license. Corporations might try to comply with “any 3rd party” requirement, but use other “developer access prevention methods” (joke) like burying the sources deep into the tree of the download page so they’re not indexed by search engines and are a bit harder to find. Luckily, we managed to find the sources for stock BMC firmware13 on our own. Unfortunately, all the interesting stuff in the form of proprietary kernel modules in said repo is already precompiled, thus the information cannot be easily extracted. Generally, the approach of supplying prebuilt kernel modules is a gray zone. It is discouraged, but it is acceptable14.

Notice me senpai - accessing UART on stock firmware

Since we temporarily ran out of easy-to-execute ideas for probing the stock firmware via hardware emulation, we decided to play with a stock firmware running on real hardware. You’d be right to doubt it’s that easy, and you’d be correct. Thankfully, due to community effort, this was much easier.

We wanted to gain UART access to the BMC. We knew this was possible, as such a successful attempt has been made in the past. Keno Fisher, the same guy who did the majority of the work for running U-BMC on x11ssh platform, did a blog post15 in which he described finding the UART TX (transmit) pin by probing the board. This gave him one-way (read) access to BMC UART, but for our case, that wasn’t enough.

Thankfully, shortly after our previous post on ZarhusBMC was published, Tim Ansell16 reached out offering the Gerber files for the x11ssh platform. These are publicly available on his repo17.

The combination of Keno’s and Tim’s work allowed us to trace the pin Keno found back to the Aspeed SoC, figure out the corresponding RX (receive) pin with the help of AST240018 documentation, we managed to find and trace where said pin ends up on the motherboard.

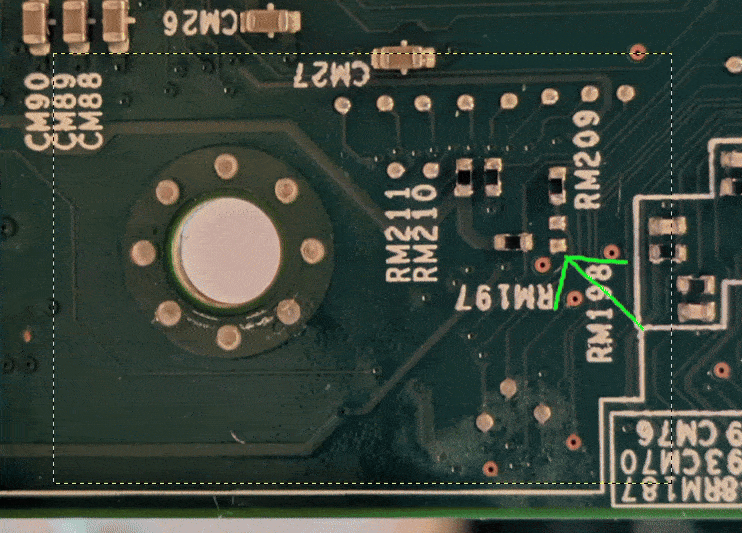

x11ssh gerber

The trace ended up on an unpopulated pad, and then it was a matter of soldering jumper wires to the motherboard.

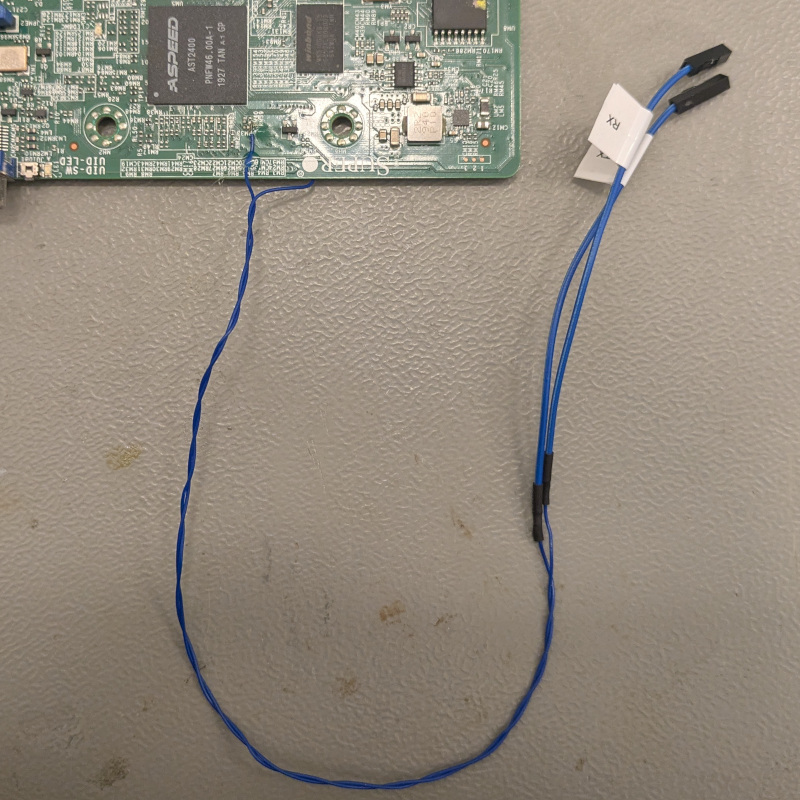

hackjob

Then, a one “hardware-flow control disabling” later, and bada bing bada boom, we’ve got the UART access to the stock firmware running on real hardware.

x11ssh stock UART access

The cool part is this is the first public discussion we’ve shared and got massive positive feedback, check out the discussion19 to learn more. What’s even cooler is that Keno himself responded on the Hacker News thread20 (thus the title of that subsection 😅).

Probing stock firmware p. II - hardware

The last thing we’ve managed to do until other projects came in was perform scoping of stock firmware, but this time on a firmware running on real hardware.

We’ve confirmed that, even with all services starting properly, we did not have access to any of the interfaces (like sysfs) for controlling or probing the GPIO pins. The precompiled binaries were also checked if they could be of any use, but besides those clearly marked as “tool”, most of them just ended up segfaulting, as I suppose they expect some kind of input stream.

What we have managed to do, though, is learning how to probe GPIOs. The developers conveniently left us the devmem binary. This, along with the documentation, enabled us to take a peek at the GPIO registers (direction, state, etc.). By putting the host into different states (on, off), we could observe the register values getting changed.

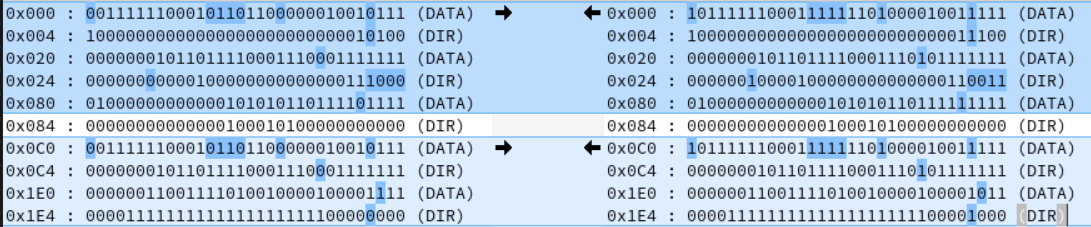

Register values comp.

The output is kind of useful. What it allows us to do is, instead of tracing back all 216 GPIOs, we can reduce this number to the number of bits that got flipped during the state change. There’s a high possibility the “Power OK” pin is among those that got flipped. What’s left is correlating those register values with the physical pin locations on the SoC with the help of the previously mentioned data sheet, tracing them with the Gerber files we’ve got, and understanding their role. It is a complex task, but it at least gives some options for further development in this area.

What’s next

Now you should have an idea of where we currently stand with porting OpenBMC to the x11ssh platform. Having said that…

“I’ve experiments to run. There is research to be done” - GLaDOS

Jokes aside, we’ve got plenty of ideas on the next steps. We still have to verify the KCS addresses theory, we want to try probing the BMC from the host side, and we’re thinking of making automated tooling for easier porting of OpenBMC, but that last one will rather target newer platforms (wink wink). There’s also a possibility of tracing back the GPIO as we discussed in the last section, or attempting to inspect what stock firmware tries to “poke” under QEMU. That last path might have limited possibilities since many components fail due to missing hardware, but there might still be a limited set of information worth attempting to extract. There definitely is an interest in getting OpenBMC on x11ssh platform running, but it’s just not ready yet. If you want to keep track of what we’re currently working on, check out ZarhusBMC discussions pane21, catch us on Matrix Zarhus Space22, or for serious offers, drop us an email at contact<at>3mdeb<dot>com.

References and resources

Additional resources:

References:

  1. https://blog.3mdeb.com/2025/2025-04-28-zarhusbmc/ ↩︎

  2. https://cfp.3mdeb.com/zarhus-developers-meetup-0x1-2025/talk/WQC7LP/ ↩︎

  3. https://man.openbsd.org/ipmi.4 ↩︎

  4. https://www.dmtf.org/sites/default/files/standards/documents/DSP0254_1.0.0.pdf ↩︎

  5. https://github.com/AMDESE/linux-aspeed/blob/integ_sp7/arch/arm/boot/dts/aspeed/aspeed-g5.dtsi#L474 ↩︎

  6. https://github.com/osresearch/u-bmc/blob/kf/x11/platform/supermicro-x11ssh-f/pkg/gpio/platform.go ↩︎

  7. https://github.com/hardenedvault/openbmc/blob/x11ssh-f/meta-supermicro/meta-x11ssh/recipes-kernel/linux/linux-aspeed/0001-add-aspeed-bmc-supermicro-x11ssh-dts.patch ↩︎

  8. https://github.com/keno ↩︎

  9. https://github.com/zarhus/zarhusbmc/discussions ↩︎

  10. https://i.imgflip.com/24r48o.jpg?a486960 ↩︎

  11. https://youtu.be/kK6Dz1gnmmY ↩︎

  12. https://stackoverflow.com/questions/21014920/arm-linux-atags-vs-device-tree ↩︎

  13. https://www.supermicro.com/wdl/GPL/SMT/X10_GPL_Release_20150819.tar.gz ↩︎

  14. http://linuxmafia.com/faq/Kernel/proprietary-kernel-modules.html ↩︎

  15. https://github.com/Keno/bmcnonsense/blob/master/blog/03-serial2.md ↩︎

  16. https://github.com/mithro ↩︎

  17. https://github.com/mithro/x11ssh-f-pcb ↩︎

  18. https://gitcode.com/Open-source-documentation-tutorial/69bbb ↩︎

  19. https://github.com/zarhus/zarhusbmc/discussions/3 ↩︎

  20. https://news.ycombinator.com/item?id=44387904 ↩︎

  21. https://github.com/zarhus/zarhusbmc/discussions ↩︎

  22. https://matrix.to/#/#zarhus:matrix.3mdeb.com ↩︎
